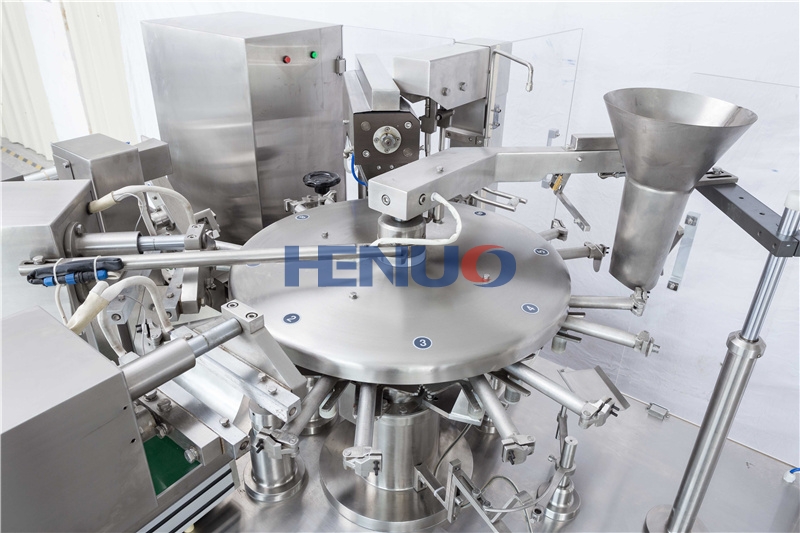

Rotary premade vacuum pouch packing machine

This machine is specially suitable for vacuum packing products into preformed pouch, such as rice, grain, roasted nuts, chestnut, etc.

Features:

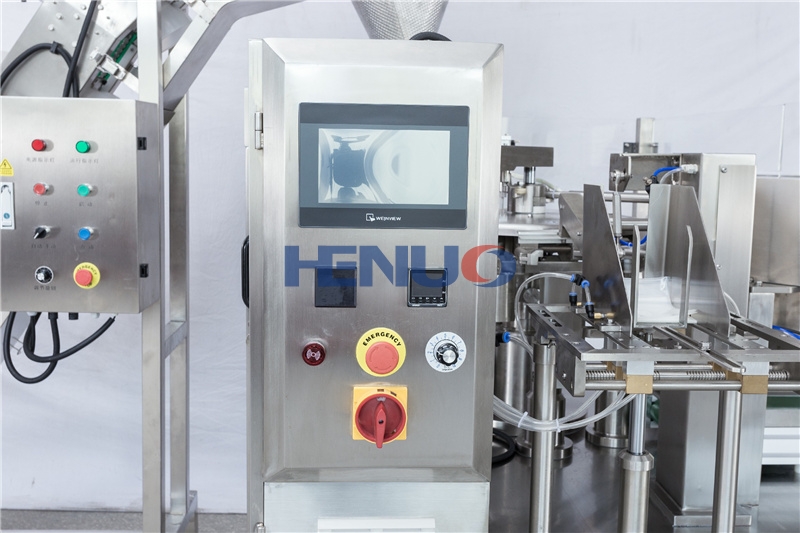

1.The machine uses the most stable cam mechanical transmission technology, the equipment is stable, low failure rate, low energy consumption. At the same time the machine uses high-end circuit structure, man-machine interface (PLC + HMI) and other advanced technology to achieve mechanical and electrical integration, easy to operate simple.
2. All controlled by the automated software system to facilitate the functional adjustment and technology upgrades, using the latest German PLC control system. using the CVT transducer.
3. Having self-testing, information feedback, fault display and photoelectric eye tracking. If there is no bag or bag is not open, the machine will not fill and seal, and having real-time display for the running status and automatic shutdown function for emergency. saving packaging materials and raw materials to ensure that the packaging site environment.
4. Adopting imported German engineering plastic bearings without refueling to reduce the pollution of materials.
5. Wide range of packaging material can be used, such as single-layer PE, PE composite material, CPP composite material, aluminum foil, multi-layer composite film, etc.

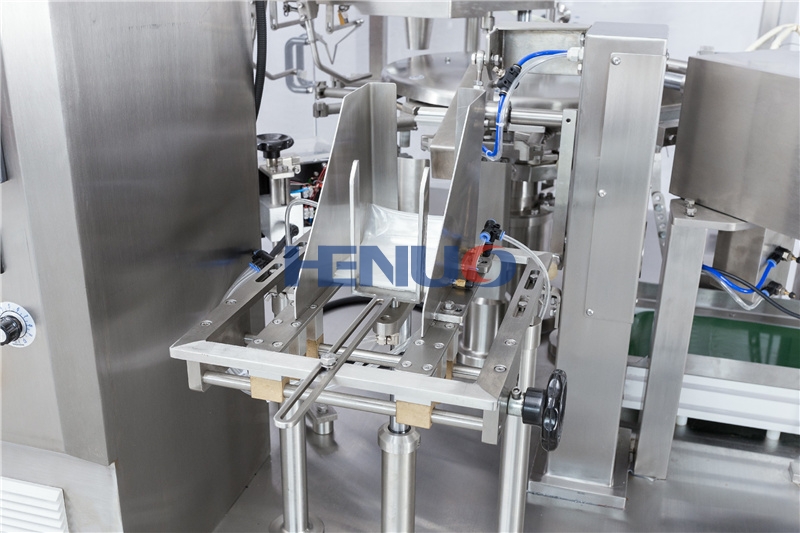

6. A variety of ways to send bags, bag storage device can store more bags, high rate of bag sending and conveying.
7. Machine operating noise less than 70db.
8. Equipment using constant temperature sealing.


Options:
· Hole-punching device
· Gas flushing device
· Vacuum device
· Flow pouch feeder
· Multiple language
· Date printing: Ribbon date printer/Inkjet printer
· Quality control: weight cheker and metal detector

Model

HNXZ-150 series

Material

SUS304

Driving method

Frequency conversion motor drive for main machine, Servo motor drive for vacuum part.

Pouch material

Thermal composite material, such as BOPP/CPP, PET/AL/PE, etc.

Pouch size

Width:65~150mm Length : 70~210mm(length above 140mm if printing needed)Can be customized for width 50-170mm

Packing speed

20-60 pouches/min

Filling range

10-3000g

Electric source

380V 3PH 50/60HZ

Air source

0.65m3/min

Power

9.29KW

Dimension

2476mm*1797mm*1661mm

Weight

2300KG

*There may be deviations from these specifications due to different configurations.
