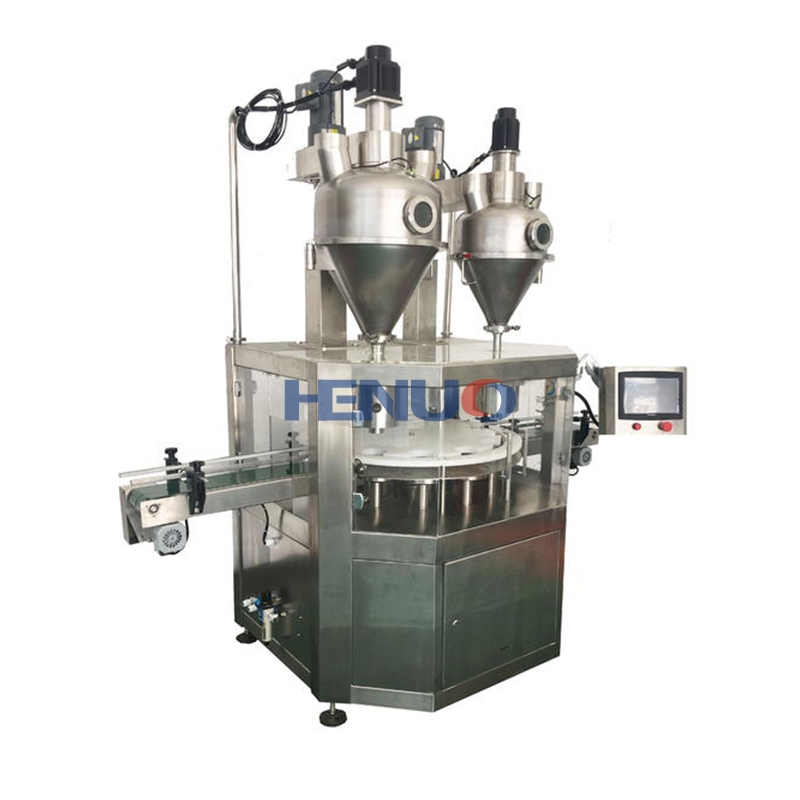

This automatic powder filling and packing machine can complete the work of can feeding, dosing, filling, weighing, feedback sending, waste discharging, etc. It is suitable for packaging powdery materials. Such as milk powder, rice flour, flour, protein powder , seasoning powder, chemical powder, medicine powder, coffee powder, soy flour, etc.
Features:
1. Program modular design, PLC control system, man-machine interface, working mode at a glance, all parameters can be added to the program module for later use.
2. Packed in cans or bottle-shaped containers, equipped with an automatic can feeding system, which can realize no bottles, no bottles and no cans.
3. With weight overweight alarm, fault alarm prompt and waste discharge function, each bottle of qualified product will not be missed to ensure product qualification rate.
4. The structure and layout of the automatic packaging machine are reasonable, the packaging varieties are replaced, cleaned and sanitary, and convenient.
5. The use of specific gravity feedback tracking and high-speed reaction clutch brake to promote the screw greatly improves the packaging accuracy.
6. The automatic packaging machine is stable and durable with less maintenance cost.
|
Filling range |
10-5000g(by changing screws) |
|
Filling speed |
30-60 cans/min |
|
Can dia. |
35-180mm |
|
Can height |
25-350mm |
|
Filling accuracy |
Packing weight≤100g, error≤ ± 2% |
|
Power supply |
110V/220V/380V, 2KW |
|
Air supply |
≥0.4Mpa,100L / min |
|
Net Weight |
500KG |
|
Dimension |
2500 * 1245 * 2300mm |
